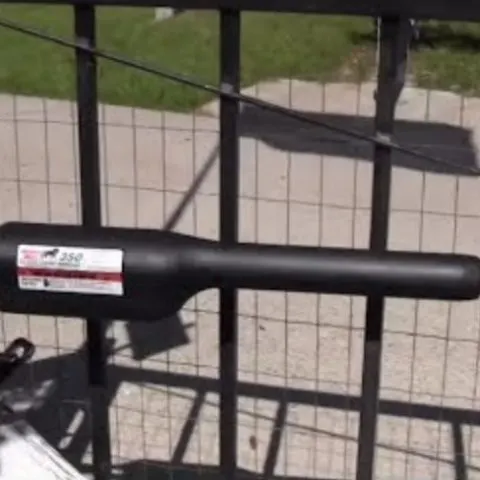

Mighty Mule Gate Opener Troubleshooting

Mighty Mule is part of the Nortek Security & Control (NSC) family that provides security, home automation, access, and personal safety systems and devices to residential and commercial customers. The Mighty Mule brand includes automatic and smart gate openers and garage door openers, which are reasonably priced as compared to other brands.

Like other systems, your Mighty Mule gate opener can run into trouble, or users can experience some challenges with their setup or operations. In this guide, we take you through the troubleshooting steps for resolving the common issues with these gate openers.

How Do You Reset a Mighty Mule Gate Opener?

To reset the open gate limit:

1. Press the button on the remote to close the gate.
2. Hold the “LEARN MASTER LIMIT” button for 10 seconds, or until the alarm sounds to clear.

To reset the closed gate limit:

1. Press the button on the opener remote to open the gate.
2. Press and hold the “LEARN MAST LIMIT” button for 10 seconds, or until the alarm sounds to clear.

Why is My Mighty Mule Gate Opener Beeping?

A beeping Mighty Mule gate opener could mean there is a problem or an error. There are several beeping patterns, each with a specific meaning. If your gate opener is beeping, below are the possible reasons:

1. 1 short beep upon activation

• Blown fuse
• Low or bad battery
• Loose battery connection

2. 1 beep with 10 seconds off

• Indicates a low battery condition

3. I beep with 2 seconds off, then pause and repeats

• Indicates master arm limit switch error

4. 2 beeps with 2 seconds off

• Indicates slave arm limit switch error

5. 3 beeps with 2 seconds off, then pause and repeats

• Indicates master arm rev counter error

6. 4 beeps with 2 seconds off

• Indicates slave arm rev counter error

7. 1 beep then 2 beeps, then pause and repeats

• Indicates master motor terminals are shorted

8. 1 beep then 3 beeps, then pause and repeats

• Indicates second motor terminals are shorted

9. A series of beeps that stop and do not repeat after power-up

• Indicates the circuit board is powered up and ready

10. Continuous uninterrupted alarm/ rapid beeping

• Indicates the circuit board has sensed and obstruction

Might Mule 562 Troubleshooting

Arm Troubleshooting

If you suspect a problem with one of the operator arms, try these troubleshooting instructions:

1. Disconnect the slave arm from the slave cable terminals so that only the master arm that is connected to the master cable terminals will work.
2. Disconnect the master arm from the gate so you can operate the arm with no load.
3. Max out the Stall Force Adjustment by turning the potentiometer all the way to the right.
4. Use the remote or push button to operate the master arm. If the arm works, you may have a problem with the slave arm. If it does not work, the problem may be with the master arm.
5. If the master arm works, disconnect the seven wires from the master cable terminals on the control board and leave them disconnected.
6. Connect the seven wires from the slave arm to the master cable terminals and leave the master arm disconnected.
7. Disconnect the slave arm from the gate so you can operate the arm with no load.
8. Use the remote or push button to operate the slave arm connected to the master cable terminals. If the master arm works when connected to the master cable terminals but the slave arm does not work connected to the master cable terminals, the problem is with the slave arm.
9. If the slave arm works connected to the master cable terminals, but the master arm did not work on the master cable terminals, the problem is with the master arm.

Gate won’t open

If your MM562 gate won’t open, preventing you from getting out of your property try disconnecting the operator arm from the gate to manually open and close the gate.

To remove the arm from a gate that does not have pin locks, follow these instructions:

1. Turn control box power switch OFF.
2. Remove the hairpin clip, clevis pin, and bushing from either the front or rear mounting point.
3. Remove the opener from the mount.
4. The gate can be opened and closed manually when the opener is disconnected.

If you have pin locks, follow these instructions:

1. Turn the control box power switch OFF.
2. Remove the pin lock from the front mount with the key that came with it.
3. Remove the hairpin clip, clevis pin, and bushing from the rear mount.
4. Remove the opener from the gate.
5. The gate can be opened and closed manually when the opener is disconnected.

How to Make Mighty Mule Gate Opener Open Faster

If your gate opener seems to be operating slowly, it could be because of the following possible reasons:

1. Under normal conditions, it may be noted that the operator arms for the MM560/562 take longer to open than the MM1000 or PRO 1000. This condition is caused by the fact that the operator arm is longer and therefore must travel a longer arc.
2. The soft start/stop feature slows the motor down at the beginning and the end of its cycle. You may be able to gain a second or two by turning this feature off. Turn the #1 dip switch in the block of seven switches to the off position to disable soft start/stop.
3. If you have a dual gate with the dip switches set for Slave Open Delay it will take longer to open or close the gate. If you do not have the automatic gate lock or a stop plate that requires the slave gate to close first, you can gain a couple of seconds by switching the #4 dip switch for Simultaneous Open. This will allow the gates to open and close at the same time without a delay.
4. Depending on your application, you may be able to readjust the pivot bracket on the post and the gate bracket in the middle of the gate so the push/pull tube on the operator’s arm does not have to extend far out.
5. The Generation 3 (blue) circuit boards do not have a low voltage lockout for voltages below 11.9vdc. If the battery is lower than 12vdc, it can make the motor run slow and even cause the circuit board to sense obstructions. It can also cause intermittent operations.

Mighty Mule Gate Opener Troubleshooting 3 Beeps

If you hear 3 beeps with 2 seconds, then pause and repeats this indicates a master arm rev counter error. To troubleshoot:

• Check the connections to master inputs. Fix any loose connections.
• Check the master arm power cable for damage.
• Check the rev counter

If you hear 1 beep then 2 beeps, then pause and repeats, it could indicate a short in the master motor terminals. To troubleshoot:

• Check the connections to master inputs
• Check the master arm power cable
• Check the motor
• Check the circuit board

Mighty Mule Gate Opener Won’t Close

If the auto-close timer is not automatically closing the gate for MM360, try the following:

1. Check to see that the auto-close timer is turned ON.
2. Check to ensure that the #1 dip switch is set correctly for a Push to Open application.
3. Check the adjustment of the open position limit.

If the gate opener senses an obstruction at the end of the open cycle, it will prevent the gate from automatically closing.

• Use the Set Limit button on the control board to set the open position limit.
• With the gate in the closed position, use the remote, keypad, or push button to open the gate. Watch the gate and be ready to stop it with the remote, push-button, or keypad when it gets to the open position.
• Once the gate is in the ideal open position, go to the control board and hold down the Set Limit button for 5 seconds or until it beeps.
• Press the keypad, remote, or push the button and make sure the gate closes to the fully closed position.
• Once the gate is closed fully and stopped, the circuit board should “remember” where to open the gate.
• If you set the limit too short, you can clear the previously programmed limit by closing the gate to a fully closed position. Hold down the Set Limit button on the control board for 10 seconds. Repeat the steps for programming the limit.

Master arm limit switch error

To troubleshoot:

• Check the connections of the power cable to the master cable terminals of the circuit board. Make sure that the wires are on the correct terminals and making good contact. Inspect the cable to make sure it is not damaged.
• If you have the arm wired to the master inputs, the connections are good, and the cable has not been damaged, there is a problem with the circuit board or the operator arm.
• To test the circuit board, disconnect the orange and brown wires from the master cable terminals on the circuit board.
• Check the voltage across the ORG and GRN terminals on the master cable terminals of the circuit board. You should have about 12 VDC. Check the voltage across the BRN and GRN terminals on the master cable terminals of the circuit board. You should have about 12 VDC.
• If you do not have 12 VDC across the terminals, the problem is with the circuit board.
• If you have 12 VDC across the terminals, the problem is with the operator arm. You will need to have it repaired.
• To double check your diagnosis, you can disconnect the master arm from the master cable terminals and leave it disconnected. Disconnect the slave arm from the slave cable terminals and wire it to the master cable terminals. If the slave arm works properly on the master cable terminals, you know for sure the problem is with the master arm.

Slave arm limit switch error

To troubleshoot:

1. Disconnect the slave arm from the slave cable terminals.
2. Turn the power switch OFF and back ON to reset the circuit board. Use the remote to operate the master arm by itself. If the master arm operates properly without the slave arm connected, you probably have a bad limit switch or power cable on the slave arm. You can verify this by trying to operate the slave arm connected to the master cable terminals.
3. Disconnect the master arm from the master cable terminals on the control board and leave the wires disconnected.
4. Connect the slave arm to the master inputs.
5. If you hear 1 beep with 2 seconds off repeatedly and slave arm will not work connected to the master cable terminal, then the circuit board is telling you that it cannot read the limit switch inside the slave arm.
6. Check the connections of the power cable from the slave arm to the master cable terminals of the circuit board. Make sure that the wires are on the correct terminals and making good contact. Inspect the cable for damage.
7. If you have the arm wired to the master cable terminal block, the connections are good, and the cable has not been damaged, there is a problem with the circuit board or the operator arm.



8. Since the master cable terminals work, as we they operated properly with the master arm, you need to test the slave cable terminals. To test the circuit board, disconnect the slave arm wires from the master cable terminals and leave them disconnected.
9. Check the voltage across the ORG and GRN terminals on the slave cable terminal s of the circuit board. You should have about 12 VDC. Check across the BRN and GRN terminals on the slave cable terminal s of the circuit board. You should have about 12 VDC.
10. If you do not have between 10-13 VDC across the terminals, the problem is with the circuit board and possibly the operator arm as well. If you have between 10-13 VDC across both the terminals, the problem is with the operator arm and the circuit board is good. You will need to have it repaired.

Mighty Mule Rev Counter Error

Slave arm rev counter error

If you hear four beeps with two seconds off repeatedly and the gate opener will not work, then you are experiencing a slave arm rev counter error. To troubleshoot, try these instructions:

1. Disconnect the slave arm from the slave cable terminals.
2. Turn the power switch OFF and back ON to reset the circuit board. Use the remote to operate the master arm by itself. If the master arm operates properly without the slave arm connected, you probably have a bad rev counter or power cable on the slave arm. You can verify this by trying to operate the slave arm connected to the master cable terminals.
3. Disconnect the master arm from the master cable terminals on the control board and leave the wires disconnected.
4. Connect the slave arm to the master inputs.
5. Turn the power OFF and back ON to reset the circuit board. Try to operate the slave arm connected to the master cable terminal by itself. If you hear three beeps with 2 seconds off repeatedly and the slave arm will not work connected to the master cable terminal, then the circuit board is indicating that it cannot read the rev counter inside the slave arm.
6. Check the connections of the power cable to the master cable terminals of the circuit board. Make sure that the wires are on the correct terminals and making good contact. Especially check the GRN, WHT, and BLU wires. Inspect the cable to ensure that is not damaged.



7. If you have the arm wired to the master cable terminal block, the connections are good, and the cable has not been damaged, there is a problem with the circuit board or the operator arm.



8. If you heard the motor attempt to run when you tried to operate it, the problem may be the revolution counter inside the operator arm.



9. Since the master cable terminals work, as we they operated properly with the master arm, you need to check the slave cable terminals. Disconnect the slave arm wires from the master cable terminals and leave them disconnected.



10. Check the voltage across the WHT and GRN terminals on the slave cable terminal block. You should have 12 VDC. Check across the BLU and GRN terminals on the slave cable terminal block. You should have 12 VDC.



11. If you do not get proper voltages at the circuit board across the slave cable terminals, you may need to replace the circuit board. If you get proper voltages and you hear the motor attempt to run upon activation, the problem may be the revolution counter inside the arm.



12. If you do not hear the motor attempt to run upon activation, the problem could be with the motor or the connections on the wires to the motor. You can connect the motor wires directly to the battery to see if it will work.



13. Make sure all the seven wires of the slave arm are disconnected from the control board.



14. Disconnect the battery wires and remove the battery from the control board.



15. If the push/pull tube on the operator arm is all the way out, touch the black wire from the motor to the negative battery post and red wire from the motor to the positive battery post. The arm should start retracting. If it does, be careful not to allow it retract over half way as it could damage the limit switches in the arm.



16. If the push/pull tube on the operator arm is all the way in, touch the black wire from the motor to the positive battery post and the red wire to the negative battery post.



17. If the motor will not run, you have a problem with the power cable or the motor.



Master arm rev counter error

If you hear three beeps with two seconds off repeatedly and the gate opener will not work, then you are experiencing a master arm rev counter error. To troubleshoot:

1. Check the connections of the power cable to the master cable terminals of the circuit board. Make sure that the wires are on the correct terminals and making good contact. Especially check the GRN, WHT, and BLU wires. Inspect the cable to make sure it is not damaged.
2. If you have the arm wired to the master inputs, the connections are good, and the cable has not been damaged, there is a problem with the circuit board or the operator arm.
3. Turn the power switch off and on to reset the circuit board. Try to operate the gate opener with the remote or by jumping the Cycle and COM terminals on the Control Inputs terminal block.
4. If you hear the motor attempt to run when you tried to operate it, the problem may be the revolution counter inside the operator arm.
5. First, check the circuit board to make sure there is no problem with the board. If all the seven wires from the operator arm are connected to the Master Cable terminals, disconnect the Blue and White wires.
6. Check the voltage across the WHT and GRN terminals on the master cable terminal block. You should have 12 VDC.
7. Check across the BLU and GRN terminals on the master terminal block. You should have 12 VDC.
8. If you do not get the proper voltage at the circuit board with the BLU and WHT wires disconnected, you may need to replace the circuit board. If you get the proper voltages at the circuit board with the BLU and WHT wires disconnected, and you hear the motor attempt to run upon activation, the problem may be the revolution counter inside the arm.
9. If you do not hear the motor attempt to run upon activation, the problem could be with the motor or the connections on the wires to the motor. You can connect the motor wires directly to the battery to see if it will work.



10. Disconnect all the seven wires from the motor from the master cable terminal block on the control board.



11. Disconnect the battery wires and remove the battery from the control box.



12. If the push/pull tube on the operator arm is all the way out, touch the black wire from the motor to the negative battery post and red wire from the motor to the positive battery post. The arm should start retracting. If it does, be careful not to allow it retract over half way as it could damage the limit switches in the arm.



13. If the push/pull tube on the operator arm is all the way in, touch the black wire from the motor to the positive battery post and the red wire to the negative battery post.



14. If the motor will not run, you have a problem with the power cable or the motor.



15. To double check your diagnosis, you can disconnect the master arm from the master cable terminals and leave it disconnected. Disconnect the slave arm from the slave cable terminals and wire it to the master cable terminals. If the slave arm works properly on the master cable terminals, you know for sure the problem is with the master arm.



Mighty Mule Gate Opener Randomly Opens and Closes on its Own

If your gate opener randomly opens and closes on its own, it’s likely an issue with your remote, frequency programming, electrical circuits, limit settings or sensors. Here is what you can do to try fix the problem:

1. Make sure all the transmitters you use to open and close the garage door are working properly. Check to make there are no stuck buttons. Replace the batteries in your remote transmitter, as worn-out batteries can send random signals.
2. Try setting your garage door to a different frequency or reprogram your remote transmitters. It is possible a neighbor is using the same garage door opener frequency or code.
3. Check for debris and obstructions that could be causing your gate opener to randomly open and close. The sensor could be sensing an obstruction, reversing the closing motion of the door, opening it again.
4. Check for damage in the electrical circuits responsible for opening and closing your garage door. A recent power outage or surge could have damage the electrical circuits, causing the door opener to behave in an erratic manner.
5. Check the limit settings and adjust them properly.

How to Program Mighty Mule Remote

To program M200 dual button transmitter to open a gate:

1. Remove the cover from the dual remote transmitter.
2. Re-arrange the eight dip switches above the battery inside the dual remote to any combination as long as they are not all +’s, all 0’s, or all -‘s.
3. Locate the ON/OFF switch on the bottom of the control box and turn it to the OFF position.
4. Press and hold one of the remote transmitter buttons while turning the ON/OFF switch to the ON position.
5. Continue to hold the remote transmitter button until the alarm sounds.
6. At this point, you should be able to operate the gate with one button on the dual remote.
7. Repeat steps 3 and 4 to program the second button on the dual remote to a second gate opener.

You can program a single button remote to open the gate.

1. If you programmed the left button on the dual remote to open the gate, then set the first eight dip switches in the single button remote exactly the same as the eight dip switches in the dual remote. Then set the ninth dip switch in the single button remote or keypad to a +.
2. If you programmed the right button on the dual remote to open the gate, then set the first eight dip switches in the single button remote exactly the same as the eight dip switches in the dual remote. Then set the ninth dip switch in the single button remote to a 0.
3. The ninth dip switch on the single button remote cannot be set to a (-) and be used with a dual button remote. If you have already programmed a single button remote and the ninth dip switch is set to a (-), then use the dual button remote and begin programming following the instructions beginning at the first step.

MM260

Setting personal transmitter code

1. Remove the back cover of the transmitter.
2. Flip the transmitter over. Use a small screwdriver to move switches to random positions. If you have more than one transmitter, now is a good time to set them all with the same code.
3. Replace the back cover of the transmitter.
4. Make sure the control box is in the OFF position. Press and hold the transmitter button while sliding the ON/OFF switch to the ON position. You will hear a series of beeps followed by a pause then a single beep. Release the transmitter’s button and the beeps will stop. Your personal code is now programmed. This process may take 8-10 seconds.

Setting close limit position

1. With the gate in the open position, (arm retracted) turn the control box on/off switch to the off position. Press and hold the transmitter while sliding the on/off switch to the ON position and you will hear a series of beeps, a pause then a single beep. At this point release the transmitter button. This process may take 8-10 seconds.
2. Press and hold the transmitter, the gate should start closing. Release the transmitter button when the gate reaches a desired CLOSED position.
3. Press and hold the transmitter again; the gate should start opening. Release the transmitter button when you hear a single audible alarm sound that indicates the gate has reached OPEN position.
4. Gate operator’s closed position is now set. Press and release the transmitter to close the gate for normal operation.

Mighty Mule Battery Not Charging

Try these troubleshooting instructions of your Mighty Mule gate opener battery is not charging:

1. Check the fuses. If the opener is not working at all, it is possible that the motor got into a strain and caused the fuse to blow. Turn the fuse over on its flat side. Look through the plastic at the wire that connects the two metal posts together. If the wire is intact, the fuse is good. If the wire that connects the two metal posts is burned or broken in two, the fuse is bad.
2. Check the condition of the PWR IN light on the left side of the circuit board. If the light is on, it is an indication that the circuit board is getting voltage from the transformer to keep the battery charged. If it is off, it is possible that you lost power at the outlet, the transformer is blown, or something is wrong with the wire from the transformer to the circuit board.
3. Disconnect the transformer from the power input terminal block and check the voltage across the wires. With the transformer wires disconnected from the circuit board, the output of the transformer should be 18-22 VAC.
4. The one short beep indicates low voltage on the battery. Disconnect the transformer and check the voltage across the posts on the battery. The circuit board needs between 12.5 VDC and 13.3 VDC on the battery to function properly. 12 VDC or lower is too low and can cause erratic intermittent operations.
5. If the battery is low, you can charge the battery with a trickle charger on the setting of 12 VDC and 2 amps or less for about 3-4 hours. You can troubleshoot to find what the problem is once the battery is charged.
6. If the battery is not low, check the connections of the battery leads. Make sure there is no corrosion around the battery posts and that the connections are tightly secured.
7. If the battery is not low and the connections are good, load test the battery. Keep the transformer disconnected from the circuit board. The voltage across the battery should be about 12.5 to 13.5 Vdc.
8. If the voltage is more than 12vdc, try activating the opener with your transmitter or by shorting the Cycle/Close and Com terminals on the control inputs terminal block.
9. The voltage should not drop more than 1vdc. If the voltage drops more than 1vdc, then you have a dead or weak cell in the battery and it needs to be replaced.
10. If the transformer and the battery are good, check the charging circuit with the battery and transformer connected to the board. You should see the charging circuit charge the battery to 14.8 VDC in the Fast Charge mode.
